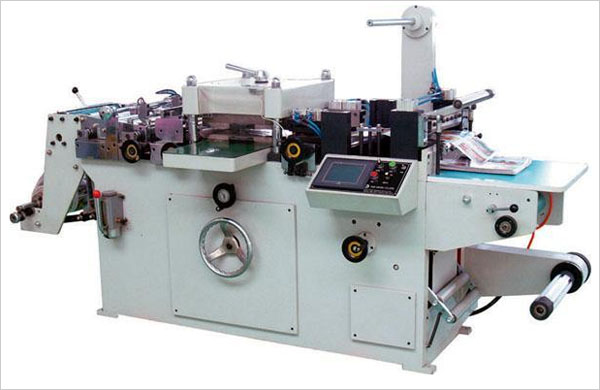

1.The machine uses platen die-cutting methods , materials, running smoothly;
2. Pull feeding system uses servo drive, high precision pulling materials
3.This machine has paper edge automatic correction device and color standard electric eye tracking device , die sets bit high precision ;
4．This machine can realize cutting, collection of waste , sliced ??or rewinding once completed ;
5．The machine can also be fitted separate discharge machine, laminating , stamping, playing on the computer side hole devices ;
6．Versatile design makes the machine ideal for self-adhesive trademark , Dacron film trademark and laser anti-counterfeit trademarks and blank label die-cutting .
| Machine Model |
WJMQ-320
|
WJMQ-350
|
|
Maximum width of roll material
|
320mm
|
350mm
|
|
Maximum cutting area ( L * W )
|
320*310mm
|
340*340mm
|
|
Maximum cutting speed
|
160次/分
|
160次/分
|
|
Unwinding diameter
|
450mm
|
450mm
|
|
Registration accuracy
|
±0.1mm
|
±0.1mm
|
|
Main motor power
|
2.2KW/220V
|
2.2KW/220V
|
|
Machine weight
|
about1500KG
|
about1800KG
|
|
Dimensions
|
2.8*0.95*1.4m
|
2.8*1.1*1.5m
|
Note: The cutting speed depends on the material , length and finished pull material requirements |
